Microduct - FZOMU-SD Ultimate™ Outdoor Loose tube (6 - 288 fibres)
Microduct - FZOMU-SD Ultimate™ Outdoor Loose tube (6 - 288 fibres)
FZOMU-SD is micro cable optimized for long installation lengths with blowing techniques in micro ducts. Besides the cable is designed for the Nordic climate has the cable different colored tubes, according to the color standard FIN2012, for a simplified and quick installation.
Read moreFZOMU-SD Ultimate™ 1x6xSML
Nexans ref. 29644098-201-00
- Packaging: Drum (2000m)
- Nominal outer diameter: 5.8 mm
- Number of optical fibres: 6
FZOMU-SD Ultimate™ 1x12xSML
Nexans ref. 29644198-201-00 - Country ref. 0233240
- Packaging: Drum (2000m)
- Nominal outer diameter: 5.8 mm
- Number of optical fibres: 12
FZOMU-SD Ultimate™ 2x12xSML
Nexans ref. 29644298-201-00 - Country ref. 0233241
- Packaging: Drum (2000m)
- Nominal outer diameter: 5.8 mm
- Number of optical fibres: 24
FZOMU-SD Ultimate™ 4x12xSML
Nexans ref. 29644398-201-00 - Country ref. 0233242
- Packaging: Drum (2000m)
- Nominal outer diameter: 5.8 mm
- Number of optical fibres: 48
FZOMU-SD Ultimate™ 8x12xSML
Nexans ref. 29644498-201-00 - Country ref. 0233243
- Packaging: Drum (2000m)
- Nominal outer diameter: 6.8 mm
- Number of optical fibres: 96
FZOMU-SD Ultimate™ 6x24xSML
Nexans ref. 29644598-201-00 - Country ref. 0233244
- Packaging: Drum (2000m)
- Nominal outer diameter: 6.8 mm
- Number of optical fibres: 144
FZOMU-SD Ultimate™ 8x24xSML
Nexans ref. 29644698-201-00 - Country ref. 0233245
- Packaging: Drum (2000m)
- Nominal outer diameter: 7.9 mm
- Number of optical fibres: 192
Description
Description
Standards
-
InternationalIEC 60793; IEC 60794; ITU-T G. 657

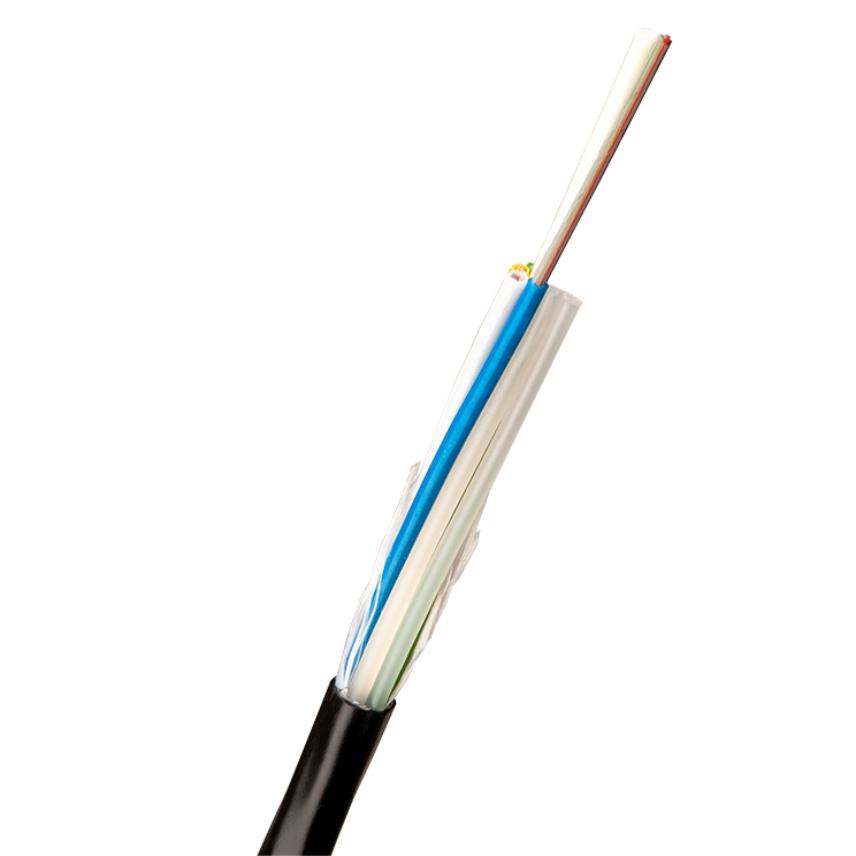

Fiber optic cable for outdoor use in ducts. The design can incorporate 6 to 288 primary coated fibres in loose tubes. The individually coloured fibres are placed in individually colored tubed, and stranded onto a central dielectric fibre reinforced strength member (FRP). FZOMU-SD is longitudinal water-blocked through the use of swellable yarn and sheathed with halogen-free black polyethylene. The cable is optimzed for long installation lengths with blowing techniques in micra ducts from 10 mm depending on the fiber count and cable outer diameter.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
