AXQ / TXXI 1 kV Al
AXQ / TXXI 1 kV Al
The cable may be used for fixed installation indoors and outdoors in air, ground and water. It is common for cables to be laid in pipes as mechanical protection. This cable is designed for laying in pipes where it will be pulled and pushed into the pipe.
Read moreAXQ / TXXI 1kV 1x 95mm²A
Nexans ref. 35121598-201-05 - Country ref. 0623147
- Packaging: Drum (500m)
- Conductor diameter: 11.4 mm
- Diameter over insulation: 13.6 mm
- Nominal outer diameter: 16.6 mm
- Approximate weight: 385 kg/km
- Max. DC resistance of the conductor at 20°C: 0.32 Ohm/km
AXQ / TXXI 1kV 1x150mm²A
Nexans ref. 35121698-201-05 - Country ref. 0623149
- Packaging: Drum (500m)
- Conductor diameter: 14.1 mm
- Diameter over insulation: 16.9 mm
- Nominal outer diameter: 20.1 mm
- Approximate weight: 580 kg/km
- Max. DC resistance of the conductor at 20°C: 0.206 Ohm/km
AXQ / TXXI 1kV 1x240mm²A
Nexans ref. 35121798-201-05 - Country ref. 0623151
- Packaging: Drum (500m)
- Conductor diameter: 18.2 mm
- Diameter over insulation: 21.6 mm
- Nominal outer diameter: 25.0 mm
- Approximate weight: 920 kg/km
- Max. DC resistance of the conductor at 20°C: 0.125 Ohm/km
AXQ / TXXI 1kV 1x400mm²A
Nexans ref. 35121998-201-05 - Country ref. 0623153
- Packaging: Drum (500m)
- Conductor diameter: 23.7 mm
- Diameter over insulation: 27.6 mm
- Nominal outer diameter: 31.4 mm
- Approximate weight: 1430 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0778 Ohm/km
AXQ / TXXI 1kV 1x630mm²A
Nexans ref. 35122098-201-05 - Country ref. 0623154
- Packaging: Drum (500m)
- Conductor diameter: 30.3 mm
- Diameter over insulation: 35.4 mm
- Nominal outer diameter: 39.6 mm
- Approximate weight: 2320 kg/km
- Max. DC resistance of the conductor at 20°C: 0.0469 Ohm/km
AXQ / TXXI 1kV 1x300mm²A
Nexans ref. 35121898-201-05 - Country ref. 0623152
- Packaging: Drum (500m)
- Conductor diameter: 20.4 mm
- Diameter over insulation: 24.9 mm
- Nominal outer diameter: 28.5 mm
- Approximate weight: 1140 kg/km
- Max. DC resistance of the conductor at 20°C: 0.1 Ohm/km
Description
Description
Standards
-
ProductIEC 60228
-
TestEN 50267-2-1; EN 50267-2-2; EN 50268-2; IEC 60754-1; IEC 60754-2; IEC 61034
Description

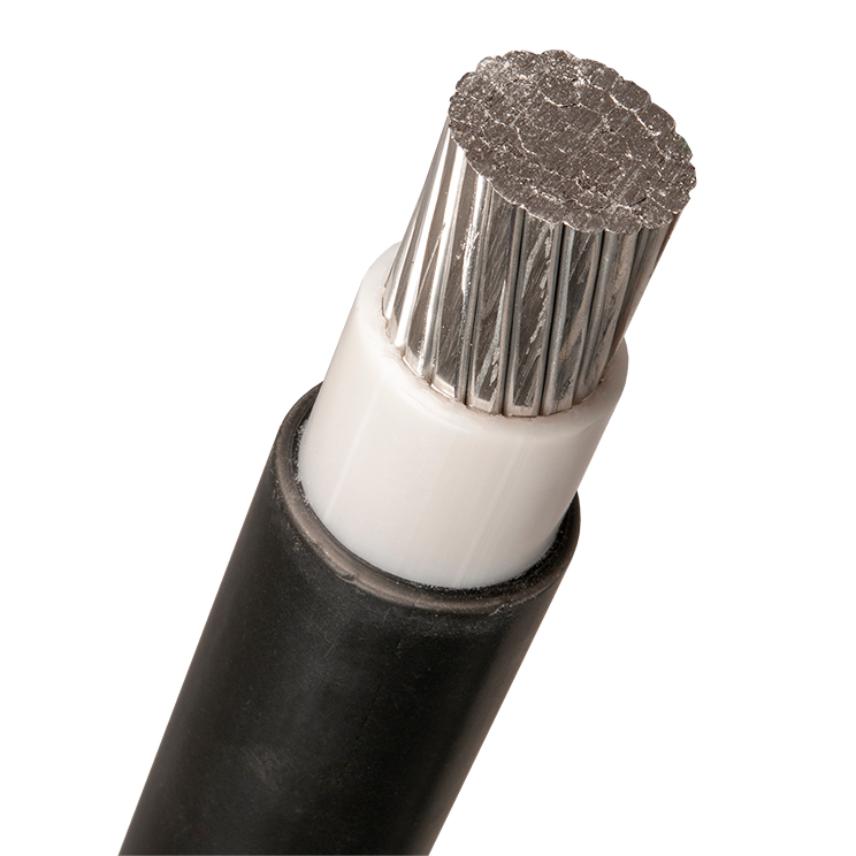

AXQ/TXXI (S1XZ1-AR) is a halogen free, XLPE-insulted and HFFR sheathed cable with circular, stranded aluminum conductor. The cable is designed according to SS 424 14 18. The conductors have resistance according to IEC 60228 class 2. The sheath is marked "NEXANS GS AREA mm2 1kV Ds2d2a2 year+month". AXQ/TXXI meets the requirements for flame class Dcas2d2a2 according to CPR.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Quality system
Designed, manufactured and tested in accordance with ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified according to ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
AXQ/TXXI will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
